The difference between horizontal and vertical electrophoresis system

Vertical gel Electrophoresis system is designed to perform a number of separations. It is responsible for protein detachment from nucleic acid based on its magnitude. This method is used by laboratories that deal with immunization, profiling of the DNA, prescription and legal science and various applications of life science. The Gel Electrophoresis system can be horizontal or vertical let us consider each and identify their advantages.

Gel electrophoresis can be conducted both horizontally and vertically. The vertical gels comprise acrylamide form and the horizontal comprise agarose lattice. The convergence of compound segments determines the sizes of the gel pores. The agarose gel pores are bigger than the acrylamide gel pores. The molecule of DNA and RNA are bigger than the normal protein. Denaturizing them before or between the procedure simplifies the investigation process. The protein molecules are conspicuous in the acrylamide gel and the nucleic acid in the agarose gel.

In horizontal gel electrophoresis, a flat positioned gel box is immersed within a running buffer. The enclosure is compartmentalised with agarose gel in between the compartments. An anode is situated on one side and a cathode on the other. The box is loaded up with an ionic cradle that makes an electric field when a charge is connected. The molecules will relocate towards the positive terminal since the nucleic acids and proteins have a negative charge. The running cushion is recycled to keep a pH slope from shaping. As the flat gel framework is associated with the running buffer it is not feasible for spasmodic support. Acrylamide too cannot be used for the flat framework as the gel gets spread in a plate evenly for presenting in the oxygen. The oxygen restrains acrylamide polymerization and does not support gel production. For DNA and RNA usability a level framework is more suitable.

The Vertical gel Electrophoresis system is undoubtedly a better choice as it contains the cathode and the anode framework in different chambers. The cathode is in the best chamber and the anode is in the base chamber of the framework. The gel is poured in between the two plates and the mounting is done in such a way that the base is immersed in one chamber and the cushion in the other. When the current passes, the cushion moves in the small measure through the gel from the best to the base chamber. The cushion moves through the gel with precise control of voltage. When this joins with the acrylamide gel, it results in many prominent partitions compared to the even framework.

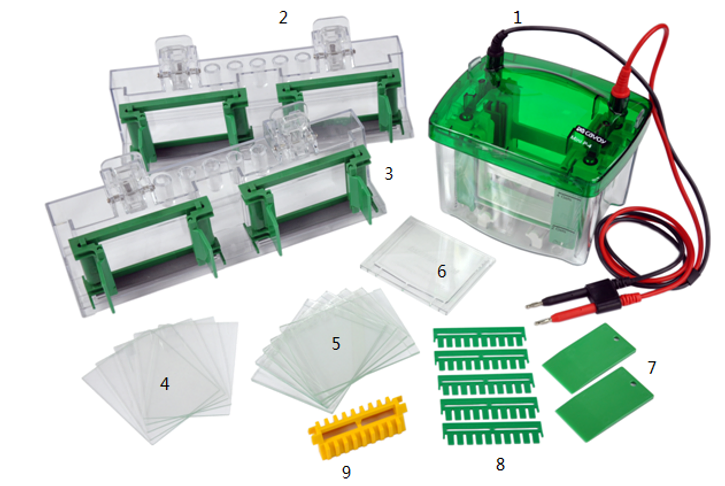

For protein isolation from nucleic acid, the Vertical gel Electrophoresis is a better choice. But if you wish to separate DNA and RNA, choosing the horizontal gel Electrophoresis will bring the best outcome. Select your Vertical gel Electrophoresis from a source that delivers the right framework for your experiment. Since the strategy is an intense technique that recognises heterogeneous materials, you must ensure that your lab is equipped with the right instrument. Choosing iGene Labserv’s, Mini P-4 Vertical Electrophoresis System Vertical Gel Electrophoresis System provides easier assemblage. It is leakproof with a gel capacity that doubles the output of the traditional cell and provides great reliability. For details visit .
