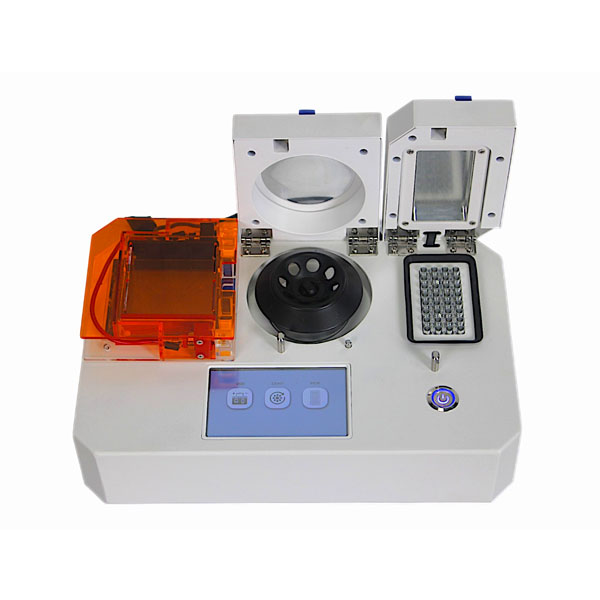

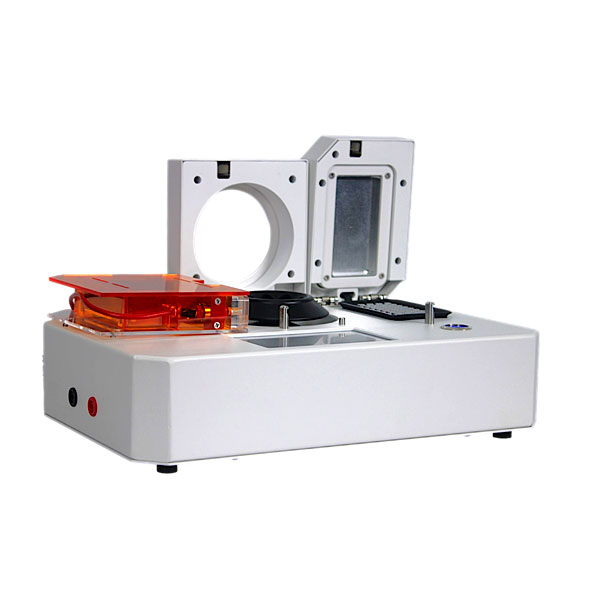

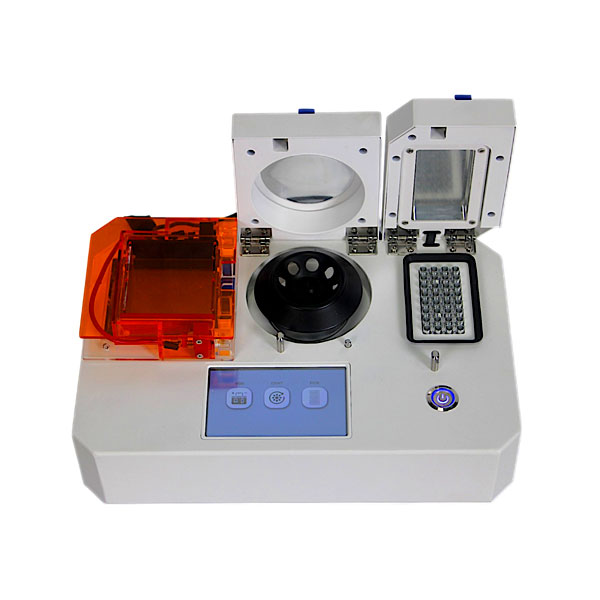

Mobile Molecular Lab Model: IG-M2L
A Mobile Molecular Lab consists of four parts: PCR thermal cycler, mini centrifuge, horizontal gel electrophoresis system, and blue light transilluminator. It can integrate all steps from nucleic acid extraction to visualised results. The overall design is exquisite and perfectly meets the needs of rapid, accurate, and reliable PCR testing anytime and anywhere.
KEY FEATURES:
- Portable integrated design, suitable for a variety of experimental sites
- Gel running/gel viewing/sample centrifugation/PCR experiments all running simultaneously to minimize the experimental
time
- Storage >10,000 files of PCR editable programs
- 5-inch colour touch screen for real-time viewing of experimental progress and program setting values.
TECHNICAL SPECIFICATIONS:
MODEL- IG-M2L
| Feature |
Specification |
| Display |
5-inch color touchscreen |
| Dimension (L×W×H) |
350 × 220 × 120 mm |
| Weight |
5.2 kg |
| Power Supply |
100–240V; 50/60Hz |
FOUR PARTS:
(1) PCR THERMAL CYCLER
| Feature |
Specification |
| Temperature Control Mode |
Standard |
| Sample Capacity |
32 × 0.2mL PCR tube / 4
× 0.2mL 8-strip tube |
| Block Temp. Control Range |
4°C – 105°C |
| Hot Lid Temp. Control Range |
30°C – 110°C |
| Temp. Display Accuracy |
±0.1°C |
| Temp. Uniformity |
±0.5°C |
| Max. Temp. Change Rate |
3°C/s |
| Thermal Cycler Technology |
Peltier heating/cooling |
| User-Defined PCR Editable Program Files |
>10,000 files |
(2) MINI CENTRIFUGE
| Feature |
Specification |
| Max. Speed |
7000 rpm |
| Max. Relative Centrifugal Force |
2700 × g |
| Rotor Capacity |
8 × 0.2/0.5/1.5/2.0 mL tube 32 × 0.2mL PCR tube 4 × 0.2mL PCR 8-strip tube |
| Timing Range |
0 – 5999 s |
| Security Lock |
Yes |
| Stop When the Lid Opened |
Yes |
(3) HORIZONTAL GEL ELECTROPHORESIS SYSTEM
| Feature |
Specification |
| Constant Voltage |
50V |
| Gel Tray |
70 × 70 mm (1 piece) |
| Gel Size |
70 × 70 mm (1 piece) |
| Comb Size |
0.75 mm, 9/16 wells (1 piece) 1.0 mm, 9/16 wells (1 piece) 1.5 mm, 9/16 wells (1 piece |
| Timing |
0 – 5999 s or Continuous |
| Gel Tank |
Included |
(4) BLUE LIGHT LED TRANSILLUMINATOR
| Feature |
Specification |
| Observation Area |
L105 × W85 mm |
| Max. Emission Wavelength |
470 nm |
| LED Light Source |
Built-in LED blue light module. |
| LED Lifetime |
>50,000 hours |
| Blue Light Intensity Adjustment |
1-10 level |
