PRODUCT OVERVIEW:

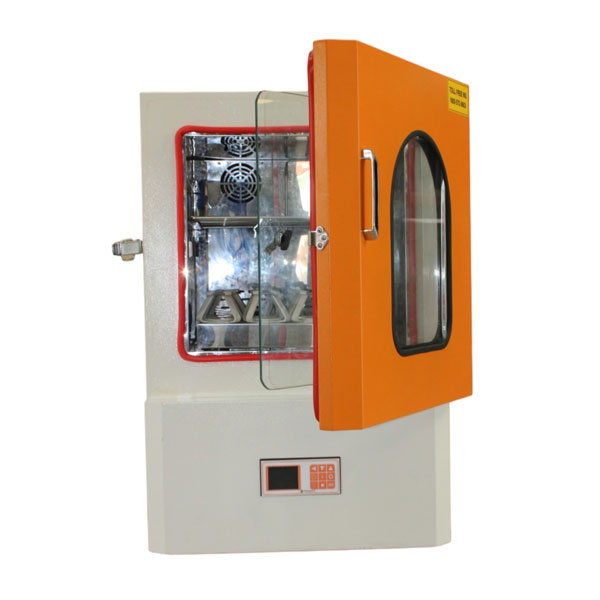

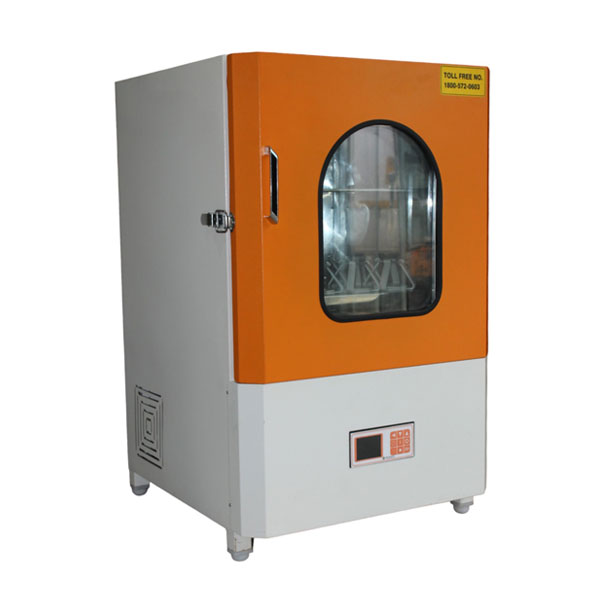

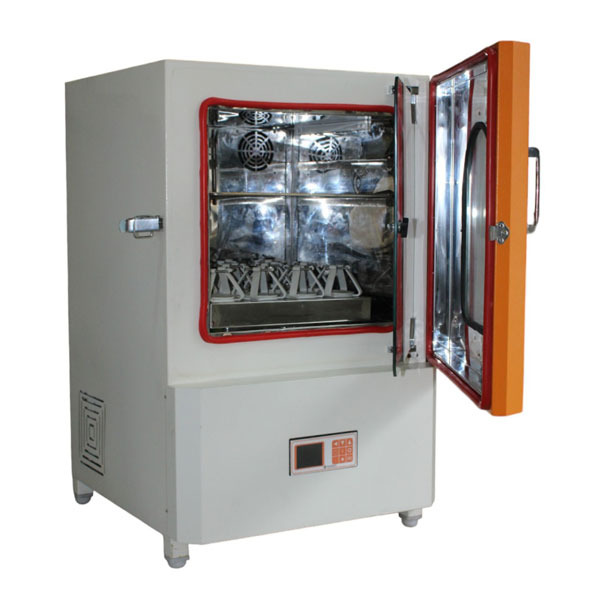

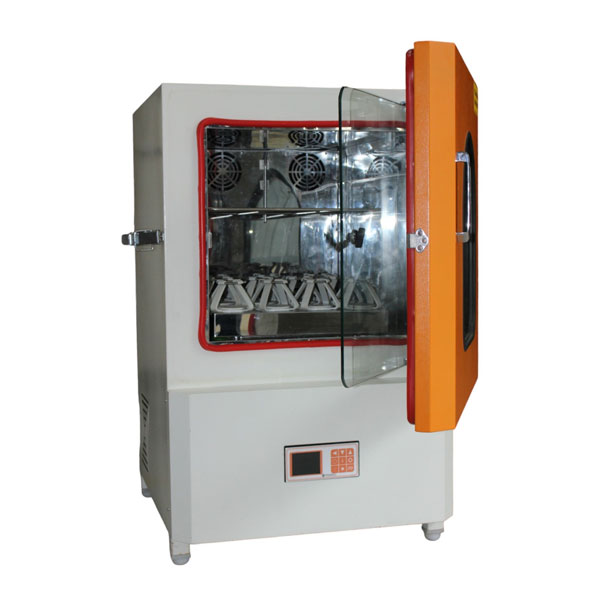

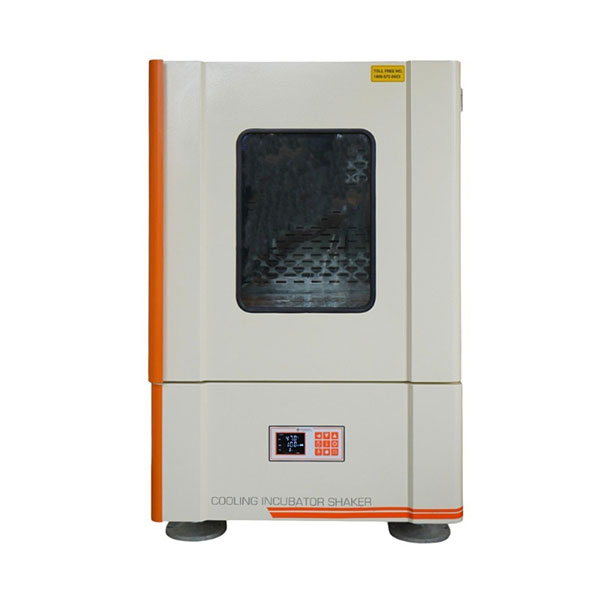

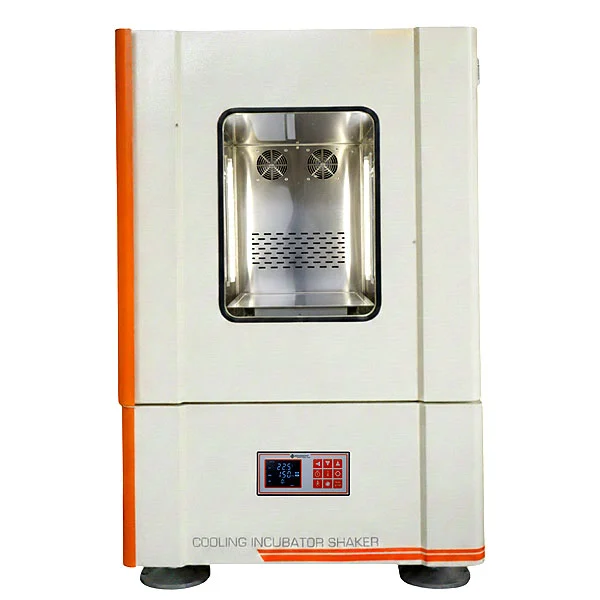

The IG-ISC/IG-IS Series of incubator shakers are versatile, reliable, and space-saving devices designed for efficient microbial culturing. Available in various sizes, these models are offered in both cooling and non cooling variants, providing flexibility for different laboratory needs. Their simple design and ease of operation make these incubator shakers highly efficient for a variety of applications.
KEY FEATURES:
-
- Triple Drive Mechanism: Directly coupled to the shaking platform, ensuring robust,
well-balanced motion and reliable performance during prolonged continuous operation - Observation window: Equipped with toughened glass and an integrated light switch
for clear observation of processes during operation - Mobility: An optional wheeled stand facilitates smooth mobility while providing enhanced stability for the unit during operation
- Versatile Platform: Flexible platform of 18×18 inches with multiple screw-mounting options allows secure positioning of clamps, flasks, and test tube holders, with optional sticky mats for universal use
- Space-Efficient Design:With a compact height, the unit fits easily beneath standard
laboratory workbenches, making it ideal for space-constrained environments. Also available in a double-deck configuration. - Cooling & Non-Cooling Variants:Available with integrated cooling as standard, with non cooling “Eco” versions also available
- Hassle-Free Cleaning:Integrated drain port enables quick and convenient drainage
of accidental spills, ensuring easy maintenance and enhanced safety - Integrated Safety Interlock: Automatically halts the shaking motion when the door is opened, preventing accidental exposure and ensuring safe operation
- Configurable Options: Custom configurations are available to meet specific application requirements
- Foamed insulation:
- Foaming is carried out manually to ensure
- Precise control of process parameters
- Prevent condensation between the insulation and outer casing
- Reduce energy consumption
- Enable silent operation
- Heavy-Duty Construction:
- MS powder coated exterior
- SS 304 interior
- Also offered with a static rack option
- Triple Drive Mechanism: Directly coupled to the shaking platform, ensuring robust,
Incubator Shaker Technical Specification:
| Parameter | Specification |
|---|---|
| Model No. | IG-DISC (Cooling)/ IG-DIS (Non-cooling) |
| Shaker Speed | 40 – 250 RPM (350, 400 & 500 RPM optional) |
| Orbit Diameter | ø 25 mm (Optional 50 mm) |
| Speed Accuracy | ± 2% of maximum speed |
| Temperature Range | 5°C above RT to 60°C With cooling: 5°C – 60°C (Customizable options available) |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±0.1°C at 37°C |
| Power Supply | 230V ± 10%, 50 Hz |
Loading capacities with platform size:
| Platform Size | Holding Method | 100 mL | 250 mL | 500 mL | 1000 mL | 2000 mL |
|---|---|---|---|---|---|---|
| 18 × 18 inch (457.2 x 457.2 mm) | Sticky Mats (4 mats) | 28 | 16 | 16 | 4 | 4 |
| Clamps | 20 | 16 | 12 | 9 | 4 | |
| 25 x 18 inch (635 x 457.2 mm) | Sticky Mats (6 mats) | 40 | 24 | 20 | 6 | 6 |
| Clamps | 24 | 18 | 12 | 6 | 6 | |
| 34 x 21 inch (870 x 525 mm) | Sticky Mats (8 mats) | 60 | 32 | 30 | 8 | 8 |
| Clamps | 40 | 32 | 20 | 13 | 7 |
Stackable Incubator Shaker Technical Specification
| Parameter | IG-TIS | IG-TIST | IG-TISC | IG-TISCT |
|---|---|---|---|---|
| Display | LCD | Touch Screen | LCD | Touch Screen |
| Controller | PID | |||
| Shaking Mode | Rotary shaking | |||
| Drive Mode | Multidimensional drive | |||
| Circulation Mode | Forced convection | |||
| Max. Capacity | 250ml*32 or 500ml*20 or 1000ml*13 or 2000ml*7 (Flask clamp) | |||
| Rotating Speed | 30-300 rpm (Top layer-200 rpm, middle layer-250 rpm & bottom layer-300 rpm) | |||
| Rotating Accuracy | ±1 rpm | |||
| Orbit Diameter | Φ26 mm (Optional Φ35 20–250 rpm, Φ50 20–200 rpm) | |||
| Temperature Range | RT+5–60°C | RT+5–60°C | 5–60°C (at 25°C) | 5–60°C (at 25°C) |
| Temperature Accuracy | ±0.1°C | |||
| Temperature Uniformity | ±0.6°C (at 37°C) | |||
| Timing Range | 0-9999 h/min | |||
| Shaking Plate Size | 870 x 525 x 8 mm | |||
| Shaking Plate Quantity | 1 pc | |||
| Standard Capacity | 500 ml x 20 | |||
| Refrigerant | – | – | R134a | R134a |
| Heating Consumption | 800–900 W | |||
| Consumption | 1000 W | 1000 W | 1200 W | 1200 W |
Ordering Informaion
| Model No. | Description | Unit |
|---|---|---|
| IG-D18ISC | The 18×18 inches Double deck Cooling Incubator Shaker comes complete with main body, power cord, tray, spanner, 2×16 A fuses, and 2 KVA stabilizer. | 1 Unit |
| IG-D25ISC | The 25×18 inches Double deck Cooling Incubator Shaker comes complete with main body, power cord, tray, spanner, 2×16 A fuses, and 2 KVA stabilizer. | 1 Unit |
| IG-D18IS | The 18×18 inches Double deck Incubator Shaker comes complete with main body, power cord, tray, spanner and 2×16 A fuses. | 1 Unit |
| IG-D25IS | The 25×18 inches Double deck Incubator Shaker comes complete with main body, power cord, tray, spanner and 2×16 A fuses. | 1 Unit |
| IG-TIS | The Triple deck Incubator Shaker with PID or touch controller is supplied with main body, power cord, spanner, drainpipe, Allen key, 10x nut & bolt (for three stacks), and 2×10 A fuses. | 1 Unit |
| IG-TISC | The Triple deck Incubator Shaker with PID or touch controller is supplied with main body, power cord, spanner, drainpipe, Allen key, 10x nut & bolt (for three stacks), and 2×10 A fuses. | 1 Unit |
| IG-TISC02 | The Triple deck incubator shaker with a touch controller, equipped with temperature, shaking, and CO₂ control options, is supplied with the main unit along with a power cord, spanner, drain pipe, Allen key, 10 sets of nuts and bolts (suitable for a three-stack configuration), and two 10 A fuses. | 1 Unit |
| IG-TISH | The Triple deck incubator shaker with a touch controller, equipped with temperature, shaking, and humidity control options, is supplied with the main unit along with a power cord, spanner, drain pipe, Allen key, 10 sets of nuts and bolts (suitable for a three-stack configuration), and two 10 A fuses. | 1 Unit |
| IG-TISL | The Triple deck incubator shaker with a touch controller, equipped with temperature, shaking, and light control options, is supplied with the main unit along with a power cord, spanner, drain pipe, Allen key, 10 sets of nuts and bolts (suitable for a three-stack configuration), and two 10 A fuses. | 1 Unit |
| IG-TISO2 | The Triple deck incubator shaker with a touch controller, equipped with temperature, shaking, and O₂ control options, is supplied with the main unit along with a power cord, spanner, drain pipe, Allen key, 10 sets of nuts and bolts (suitable for a three-stack configuration), and two 10 A fuses. | 1 Unit |
