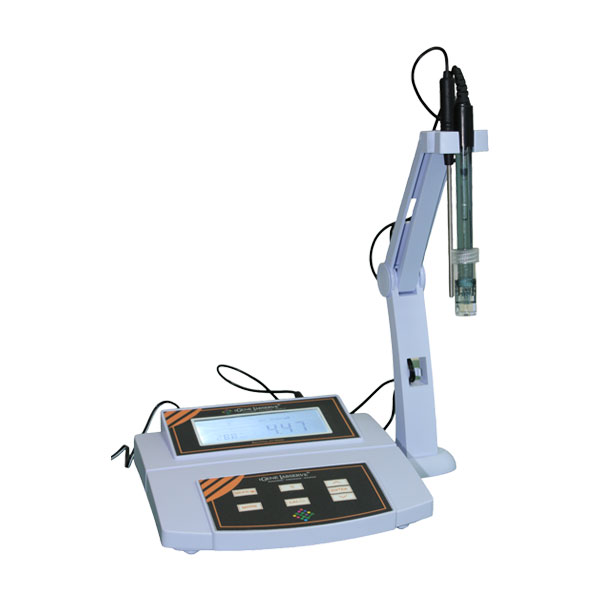

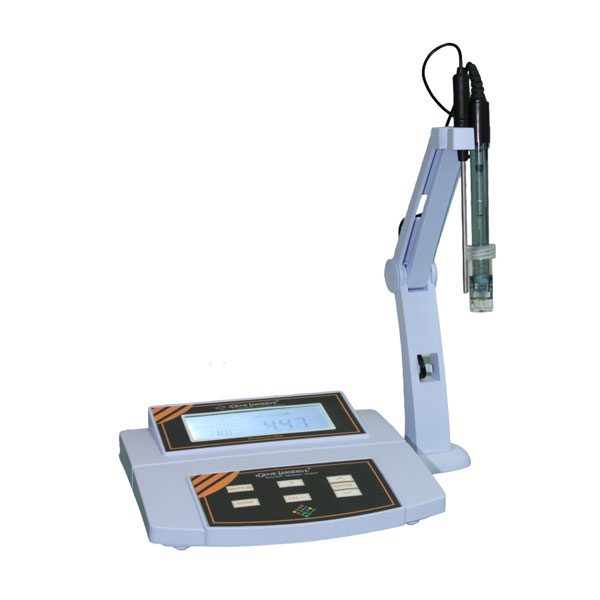

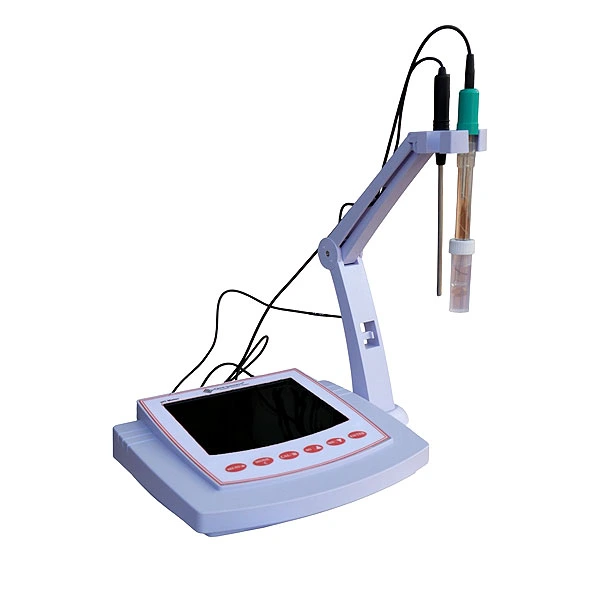

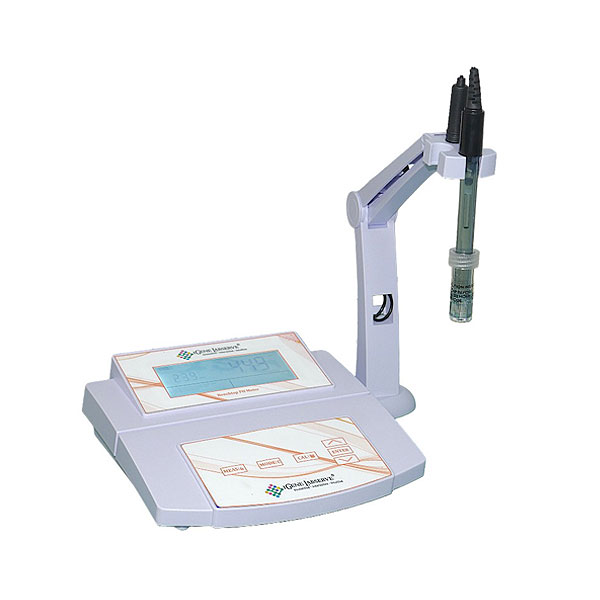

PH Meter IG-10pH

Download Brochure

IG-10 pH meter is an instrument used to measure acidity or alkalinity of a solution.

pdf

Category: Tag:

ABOUT THE COMPANY

iGene Labserve Pvt. Ltd. is gaining recognition by offering resilient, innovative solutions in laboratory instrumentation across healthcare, genomics, drug discovery, biopharma, and food & beverage sectors. We strive to enhance lab efficacy and reduce challenges through advanced technologies and a diverse product portfolio tailored to our customers’ needs.

DESCRIPTION:

A pH meter is a precision instrument used to measure the acidity or alkalinity of a solution. It provides accurate digital readings of pH values, helping users monitor the chemical composition of samples in real-time. Equipped with a sensitive glass electrode and reference electrode, modern pH meters come with features like temperature compensation, auto-calibration, and data logging for ease of use and accuracy.

FEATURES

  • Large Backlit LCD Display: Clearly shows mode indicators, measured values, and operational help messages.
  • 3-Point Push-Button Calibration: Supports up to three calibration points with automatic buffer recognition.
  • Customizable Calibration & Units: Selectable pH buffer standards and temperature units for user flexibility.
  • Automatic Electrode Slope Calculation: Displays electrode slope after calibration for quality assurance.
  • Automatic Temperature Compensation (ATC): Ensures precise pH readings across varying temperatures.
  • Automatic Endpoint Detection: Freezes stable measurements automatically for reliable recording.
  • Flexible User Settings: The Setup menu allows customisation of calibration points, temperature units, hold function (auto/manual), and auto-off feature.
  • Reset Function: Restores all settings to factory defaults when needed.

TECHNICAL SPECFICATION

MODEL IG-10pH
pH Range -2.00 to 16.00 pH
pH Resolution 1
Accuracy ± 0.01pH
Calibration Points up to 3 points
TEMP Range 0 to 105°C
Accuracy ± 0.5°C
Resolution 0.1°C
Temperature Compensation 0~100°C, Manual / Automatic
GENERAL Hold Function Available
Auto Off Function Available
Connector BNC
Display LCD (135× 75mm)
Power Requirements DC 9V, using AC adapters, 220VAC/50Hz
