DESCRIPTION:

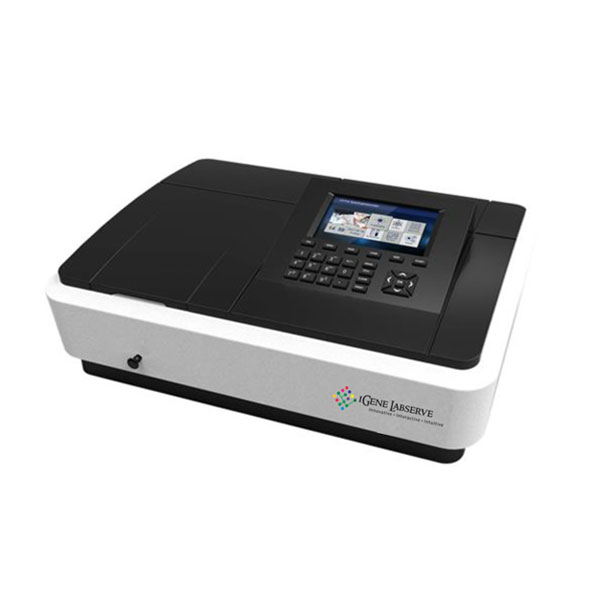

The IG-UV Series Spectrophotometers are advanced analytical instruments designed to measure the absorbance and transmittance of samples across a wide wavelength range (190–1100 nm). Built with a modern design, optimized optical system, and powerful microprocessor, these instruments ensure high accuracy, excellent stability, and long operational life. With a large LCD display, intuitive silicone keypad, robust data storage, and support for multiple test modes, the IG-UV Spectrophotometer series is ideal for laboratories in research, pharmaceuticals, biotechnology, chemical analysis, and education.
KEY FEATURES
- 7-inch Color LCD Display: A bright, intuitive screen that displays real-time scanning curves, graphs, and test parameters—enabling standalone operation without a PC.
- High-Performance Optical System: Equipped with a 1200 lines/mm holographic grating and low stray light level (≤0.03%T), ensuring accurate spectral results and superior resolution.
- Advanced Processing Power: Built with a 32-bit Cortex-M3 processor (120 MHz) supporting fast operation, real-time calculations, and storage of 5000 data sets and 500 curves.
- Long-Life Socket-Type Lamps:Tungsten-halogen and deuterium lamps with up to 2000 hours life, automatic lamp switching, and easy tool-free replacement.
- Connectivity & Data Management: Supports USB-A, USB-B, RS232, and direct printer connectivity. Data can be exported in Excel, text, and image formats— no external software needed.
- High Sensitivity & Stability: Silicon photodiode detector ensures excellent sensitivity. Stability is maintained at ±0.002A/h @ 500 nm.
- Large Sample Chamber & Accessories: Accommodates a wide variety of cuvettes and attachments for flexible analytical applications.
- Comprehensive Operating Modes: Photometry, Quantitation, Kinetics, Wavelength Scanning, Multi Wavelength, and DNA/Protein measurement.

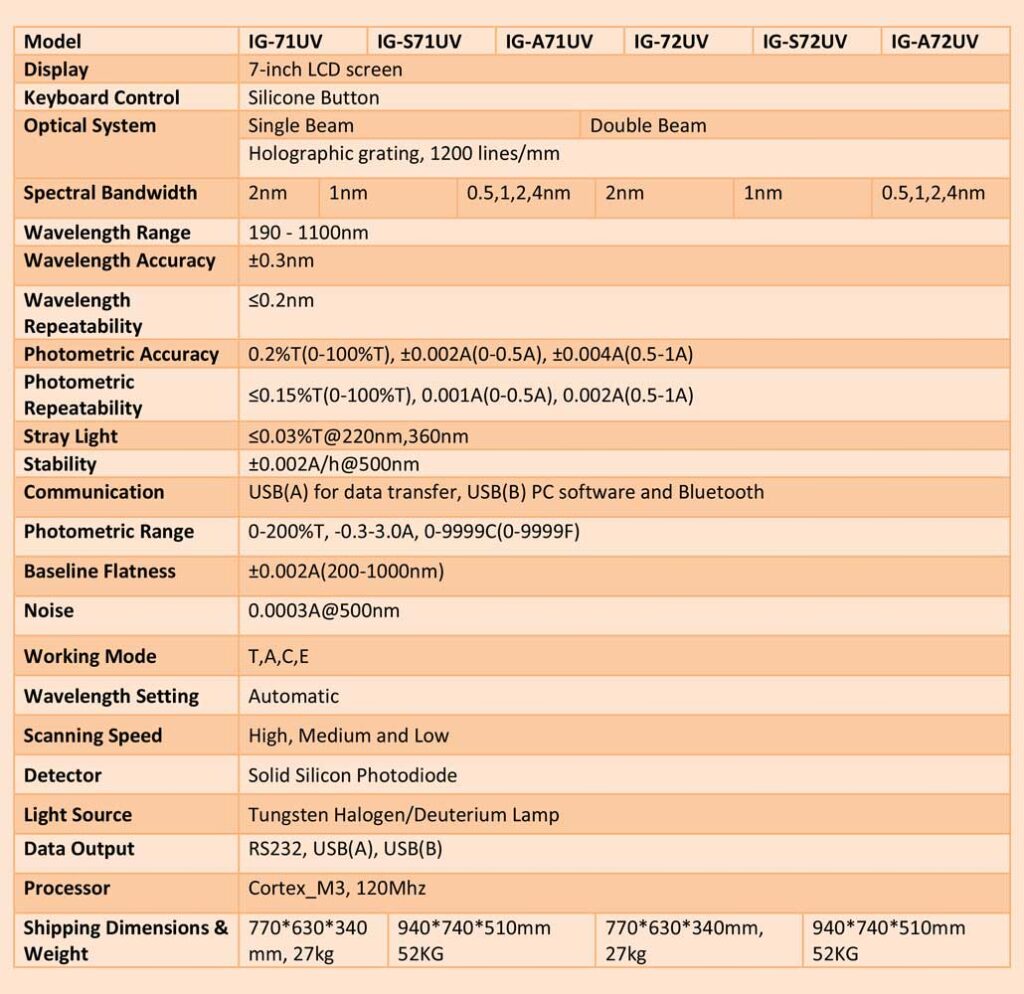

TECHINCAL SPECFICATION:
| Parameter | IG-71UV | IG-S71UV | IG-A71UV | IG-72UV | IG-S72UV | IG-A72UV |
|---|---|---|---|---|---|---|
| Display | 7-inch LCD | 7-inch LCD | 7-inch LCD | 7-inch LCD | 7-inch LCD | 7-inch LCD |
| Keyboard | Silicone Button | Same | Same | Same | Same | Same |
| Optical System | Single Beam | Single Beam | Single Beam | Double Beam | Double Beam | Double Beam |
| Holographic Grating | 1200 lines/mm | Same | Same | Same | Same | Same |
| Spectral Bandwidth | 2 nm | 1 nm | 0.5/1/2/4 nm | 2 nm | 1 nm | 0.5/1/2/4 nm |
| Wavelength Range | 190–1100 nm (all models) | |||||
| Wavelength Accuracy | ±0.3 nm | |||||
| Wavelength Repeatability | ≤0.2 nm | |||||
| Photometric Accuracy | 0.2%T (0–100%T), ±0.002A (0–0.5A), ±0.004A (0.5–1A) | |||||
| Photometric Repeatability | ≤0.15%T, 0.001A (0–0.5A), 0.002A (0.5–1A) | |||||
| Stray Light | ≤0.03%T @ 220/360 nm | |||||
| Photometric Range | 0–200%T, -0.3–3.0A, 0–9999C | |||||
| Baseline Flatness | ±0.002A (200–1000 nm) | |||||
| Noise | 0.0003A @ 500 nm | |||||
| Working Modes | T, A, C, E | |||||
| Wavelength Setting | Automatic | |||||
| Scanning Speed | High / Medium / Low | |||||
| Detector | Silicon Photodiode | |||||
| Light Source | Tungsten-Halogen & Deuterium | |||||
| Data Output | RS232, USB-A, USB-B | |||||
| Processor | Cortex-M3, 120 MHz | |||||
| Shipping Dimensions (mm) | 770×630×340 (27 kg) | 940×740×510 (52 kg) | Same as IG-71UV | 940×740×510 (52 kg) | ||
