ABOUT THE COMPANY:
iGene Labserve Pvt. Ltd. is a trusted name in laboratory instruments, dedicated to delivering quality, innovation, and reliability. Our wide range of solutions is designed to meet international standards and support the needs of modern laboratories. Backed by strong service and customer support, we empower scientists and healthcare professionals to achieve excellence with confidence.
PRODUCT INSIGHT

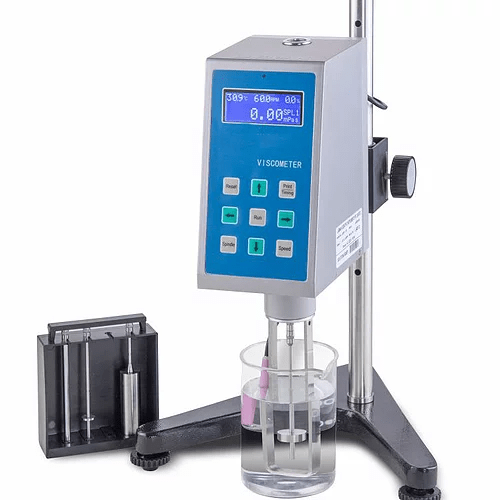

The iGene Labserve Viscometer range is designed for precise measurement of viscosity across a wide range of fluids, from low-viscosity liquids to highly viscous materials. Powered by a high accuracy stepping motor and intelligent electronics, these instruments provide direct digital readout of all critical parameters, ensuring repeatable and reliable results
-
These viscometers are widely used in:
- Dairy products and beverages (juices, liquid foods)
- Pharmaceuticals and formulations
- Polymer solutions and oils
- Paints, coatings, and inks
- Latex, adhesives, and solvent-based materials

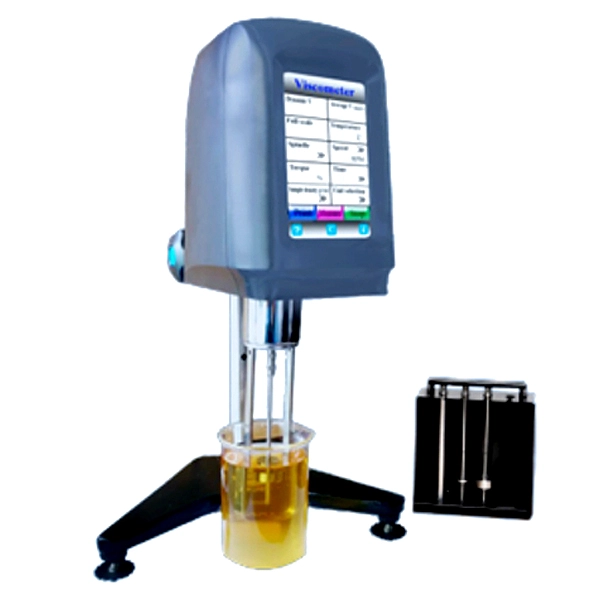

With multiple models available—digital display and advanced touch screen variants—the range caters to routine QC testing as well as advanced laboratory applications.
DEAR READER,
At iGene Labserve, we understand that accurate viscosity measurement is critical for quality control, formulation development, and research across industries. This unified catalogue has been carefully created, enabling you to easily compare models and select the viscometer that best fits your application and workflow.
Each model in this range is engineered with precision, reliability, and ease of use in mind—delivering consistent performance in demanding laboratory and industrial environments
UNIFIED KEY FEATURES
- High-precision stepping motor for accurate and reliable operation
- Direct readout of all measurement parameters
- Auto-ranging function for easy interpretation of results
- Time function for controlled and repeatable measurements
- Audible alarm when torque falls below 20%
- Linear calibration for consistent accuracy across the range
- Wide power supply compatibility: 100–240 V AC
- RTD temperature monitoring with sensor probe
- RS-232 communication interface for data output
- Supplied with standard spindle set (#1, #2, #3, #4)
- Optional spindle #0 available
- High measurement performance:
- Accuracy: ±1.0% of full range
- Repeatability: ±0.5%
TECHNICAL SPECIFICATIONS
| Parameter | IG-195V | IG-200V | IG-201V | IG-205V |
|---|---|---|---|---|
| Display | LCD Digital | LCD Touch Screen | ||
| Measuring Range (mPa·s) | 20 – 2,000,000 | 10 – 2,000,000 | ||
| Speed (RPM) | 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 | |||
| Measurement Accuracy | ±1.0% of full range | |||
| Repeatability | ±0.5% | |||
| Standard Spindles | #1, #2, #3, #4 | |||
| Optional Spindle | #0 | |||
| Temperature Monitoring | RTD Sensor Probe | |||
| Output | RS-232 Interface | |||
| Power Supply | AC 220 V / 50 Hz | |||
| Dimensions (L × W × H) mm | 370 × 325 × 280 | 400 × 350 × 360 | ||
| Weight | 6.8 kg | 9 kg | ||
