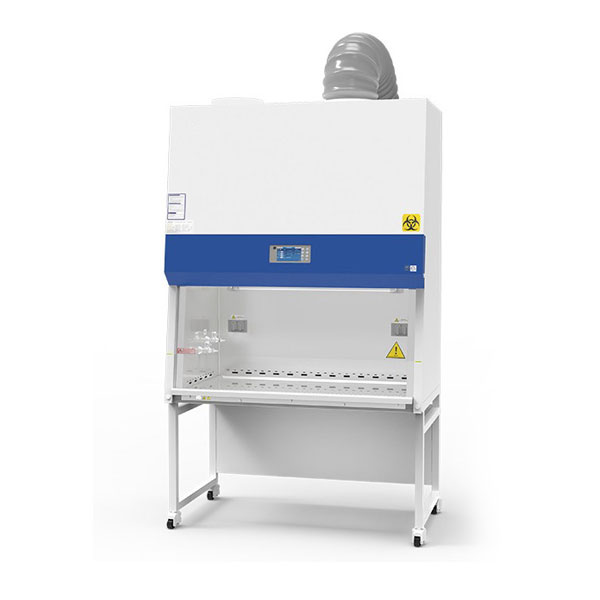

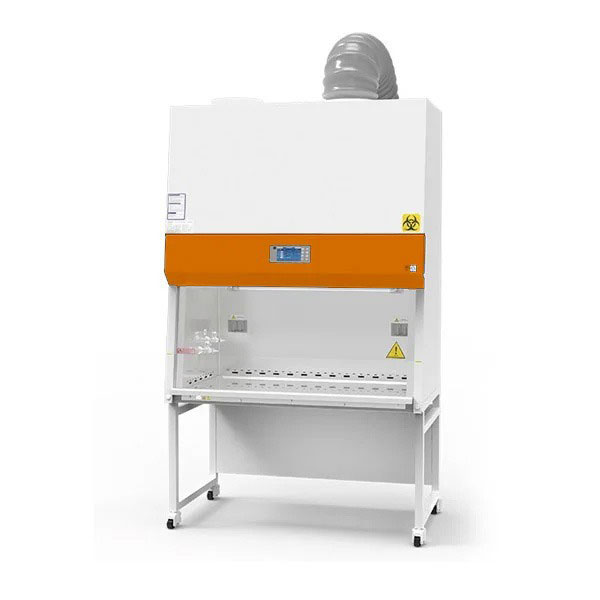

Biosafety Cabinet Class II B2

Download Brochure

pdf

Category: Tag:

iShield Biosafety Cabinet

Class II, Type A2 and B2 Biological Safety Cabinets Energy-Efficient, Safe, and Ergonomic Biosafety Cabinet

Class II type A2 Biosafety Cabinet Technical Specification

Model Dimension (ft) Internal Size (mm) External Size without stand (mm) External size with stand (mm) Airflow Volume (Inflow) Airflow Volume (Downflow) Filter Type Noise Display Certification
IG-CIIA222G (NSF Certified) 2 x 2 x 2 605 x 500 x 540 705 x 650 x 1290 705 x 650 x 2220 290 m³/h 360 m³/h ULPA 99.9995% @ 0.12 µm ≤65 dB Touchscreen NSF49
IG-CIIA2222 (NSF-compliant) 2 x 2 x 2 610 x 610 x 610 774 x 764 x 1690 774 x 764 x 2400 240 m³/h 442 m³/h HEPA 99.97% @ 0.3 µm <65 dB LCD/KeyPad CE
IG-CIIA232G (NSF Certified) 3 x 2 x 2 910 x 600 x 660 1087 x 775 x 1458 1085 x 765 x 2220 445 m³/h 649 m³/h ULPA 99.9995% @ 0.12 µm ≤65 dB Touchscreen NSF49
IG-CIIA2322 (NSF-compliant) 3 x 2 x 2 910 x 610 x 610 1085 x 765 x 1690 1085 x 765 x 2400 445 m³/h 649 m³/h HEPA 99.97% @ 0.3 µm <65 dB LCD/KeyPad CE
IG-CIIA242G (NSF Certified) 4 x 2 x 2 1210 x 600 x 660 1383 x 775 x 1290 1383 x 775 x 2220 587 m³/h 863 m³/h ULPA 99.9995% @ 0.12 µm ≤65 dB Touchscreen NSF49
IG-CIIA2422 (NSF-compliant) 4 x 2 x 2 1220 x 610 x 610 1382 x 764 x 1690 1382 x 764 x 2400 595 m³/h 884 m³/h HEPA 99.97% @ 0.3 µm <65 dB LCD/Keypad CE
IG-CIIA262G (NSF Certified) 6 x 2 x 2 1700 x 600 x 660 1873 x 775 x 1290 1873 x 775 x 2220 824 m³/h 1212 m³/h ULPA 99.9995% @ 0.12 µm ≤65 dB Touchscreen NSF49
IG-CIIA2622 (NSF-compliant) 6 x 2 x 2 1829 x 610 x 610 1991 x 764 x 1690 1995 x 764 x 2400 892 m³/h 1325 m³/h HEPA 99.97% @ 0.3 µm <65 dB LCD/KeyPad CE

Class II type B2 Biosafety Cabinet Technical Specification

Model Dimension (ft) Internal Size (mm) External Size without stand (mm) External size with stand (mm) Exhaust Volume Airflow Velocity Filter Type Noise Display Certification
IG-CIIB242G (NSF Certified) 4 x 2 x 2 1210 x 600 x 660 – – 1320 m³/h Tested opening ULPA 99.9995% @ 0.12 µm ≤60 dB Touchscreen NSF49
IG-CIIB2222 (NSF-compliant) 2 x 2 x 2 610 x 610 x 610 774 x 764 x 1690 774 x 764 x 2400 100% Exhaust 105 fpm HEPA 99.97% @ 0.3 µm <60 dB LCD CE
IG-CIIB2322 (NSF-compliant) 3 x 2 x 2 914 x 610 x 610 1080 x 764 x 1690 1080 x 764 x 2400 – – HEPA 99.97% @ 0.3 µm <60 dB LCD CE
IG-CIIB2422 (NSF-compliant) 4 x 2 x 2 1219 x 610 x 610 1382 x 764 x 1690 1382 x 764 x 2400 – – HEPA 99.97% @ 0.3 µm <60 dB LCD CE
IG-CIIB2622 (NSF-compliant) 6 x 2 x 2 1829 x 610 x 610 1995 x 764 x 1690 1995 x 764 x 2400 – – HEPA 99.97% @ 0.3 µm <60 dB LCD CE

Ordering Information

Model No. Description Unit
IG-CIIA222G Class II A2 Biosafety Cabinet – internal dimension 605 x 500 x 540 mm (NSF certified) supplied with a main body, UV lamp, base stand, multiple fuses (12.5A, 6.3A, 2.5A), drain valve set, rubber gaskets, SS screws/washers, hex wrench, remote control. 1 Unit
IG-CIIA2222 Class II A2 Biosafety Cabinet – internal dimension 610 x 610 x 610 mm (NSF-compliant) supplied with a main body, power cord, tray, ducting, drain valve, stand (4 pcs), nut bolts, duct clamp, remote control (only with PID), fuse 10A x2. 1 Unit
IG-CIIA232G Class II A2 Biosafety Cabinet – internal dimension 910 x 600 x 660 mm (NSF certified) supplied with a main body, UV lamp, base stand, multiple fuses (12.5A, 6.3A, 2.5A), drain valve set, rubber gaskets, SS screws/washers, hex wrench, remote control. 1 Unit
IG-CIIA2322 Class II A2 Biosafety Cabinet – internal dimension 910 x 610 x 610 mm (NSF-compliant) supplied with a main body, power cord, tray, ducting, drain valve, stand (4 pcs), nut bolts, duct clamp, remote control (only with PID), fuse 10A x2. 1 Unit
IG-CIIA242G Class II A2 Biosafety Cabinet – internal dimension 1210 x 600 x 660 mm (NSF certified) supplied with a main body, UV lamp, base stand, fuses, drain valve set, gaskets, screws, remote, hex wrench, tubular motor rod key. 1 Unit
IG-CIIA2422 Class II A2 Biosafety Cabinet – internal dimension 1220 x 610 x 610 mm (NSF-compliant) supplied with a main body, power cord, tray, ducting, drain valve, stand, nuts/bolts, duct clamp, remote (only with PID), fuse 10A x2. 1 Unit
IG-CIIA262G Class II A2 Biosafety Cabinet – internal dimension 1700 x 600 x 660 mm (NSF certified) supplied with a main body, UV lamps, base stand, fuses, drain valve set, gaskets, screws, remote, hex wrench, tubular motor rod key. 1 Unit
IG-CIIA2622 Class II A2 Biosafety Cabinet – internal dimension 1829 x 610 x 610 mm (NSF-compliant) supplied with a main body, power cord, tray, ducting, drain valve, stand, nut bolts, duct clamp, remote (only with PID), fuse 10A x2. 1 Unit
IG-CIIB242G Class II B2 Biosafety Cabinet – internal dimension 1210 x 600 x 660 mm (NSF certified) supplied with a main body, UV lamp, power cord, tray, ducting, drain valve, stand, nuts/bolts, duct clamp, remote, blower + 1 Unit. 1 Unit
IG-CIIB2222 Class II B2 Biosafety Cabinet – internal dimension 610 x 610 x 610 mm (NSF-compliant) supplied with a main body, power cord, tray, ducting, drain valve, stand, nuts/bolts, duct clamp, blower, blower power cord. 1 Unit
IG-CIIB2322 Class II B2 Biosafety Cabinet – internal dimension 914 x 610 x 610 mm (NSF-compliant) supplied with a main body, power cord, tray, ducting, drain valve, stand, nuts/bolts, duct clamp, blower, blower power cord. 1 Unit
IG-CIIB2422 Class II B2 Biosafety Cabinet – internal dimension 1219 x 610 x 610 mm (NSF-compliant) supplied with a main body, power cord, tray, ducting, drain valve, stand, nuts, duct clamp, blower, blower power cord. 1 Unit
IG-CIIB2622 Class II B2 Biosafety Cabinet – internal dimension 1829 x 610 x 610 mm (NSF-compliant) supplied with a full Standard B2 accessory kit included. 1 Unit
