FEATURES & SPECIFICATIONS
DESCRIPTION:

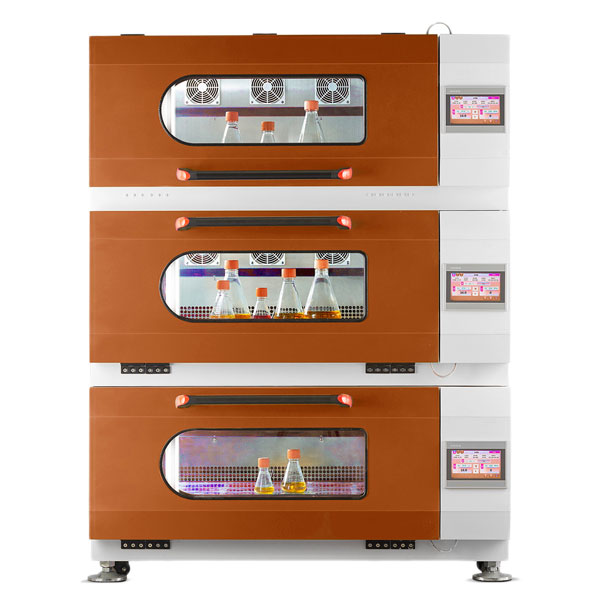

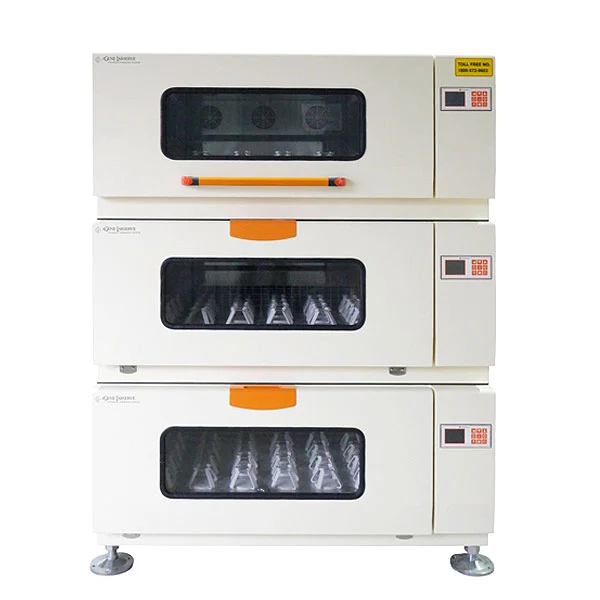

Stackable incubator shaker (with cooling function) inherits the high precision manufacturing process, and integrates many innovations in material process and control system. The large incubation space is ideal for large volume bacterial culture.
FEATURES:
- Simple LCD button control interface, easy to operate and high stability.
- Double-layer glass door to ensure excellent heat insulation and safety.
- Brushed stainless steel rounded corners of the integrated cavity, beautiful and easy to clean.
- Nearly silent machine operation, multi-layer stacking without movement.
- One-piece molding clamps, stable and durable, effectively prevent unsafe events brought about by clamp breakage.
- No heat waterproof fan, significantly reduce background heat, save energy.
- Push-pull 8mm thick aluminum alloy tray never deformed, easy to place the culture flasks.
- Waterproof design of the inner cavity of the incubator, easy to clean dirt.
- Flexible placement stackable to 3 layers, effectively save the placement space.
SPECIFICATIONS:
Model | IG-135SIS |
---|---|
Control interface | LCD button control interface |
Rotation speed | 2-300 rpm |
Speed control accuracy | 1 rpm |
Shaking throw | 26mm (Customization is available) |
Temperature control mode | PID control mode |
Temperature control range | 4℃-60℃ |
Temperature display resolution | 0.1℃ |
Temperature fluctuation | ±0.1℃ |
Temperature field uniformity | ±0.5℃ |
Heating power | 1400W |
Timing function | 0-999.9hours |
Tray size | 520x880mm |
Maximum load | 50kg |
Tray capacity of shake flask | 60x250ml or 40x500ml 24x1000ml or 15x 2000ml |
Dimension (WxDxH) | L1330xW280xH620mm (one unit) L1330xW280xH1170mm (two units) L1330xW280xH1725mm (three units) |
Internal usable height | 340mm |
Volume | 315L |
Illumination | FI tube, 30W |
Working temperature | 5℃-35℃ |
Sterilization method | UV sterilization |
Clamp type | Universal spring mesh, flask clamps, deep-well plate clamps, test tube holders, etc. are available |
Power supply | 220-240V/50-60Hz |
Weight | 220kg per unit |
