Features and Benefits

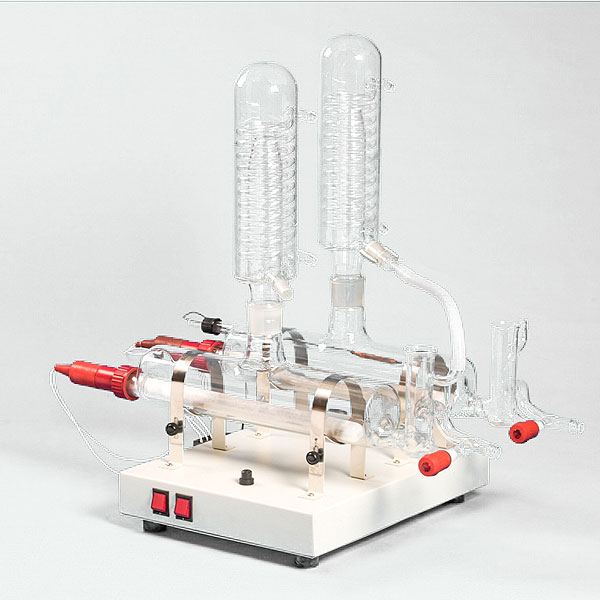

- Borosilicate condenser and boiler are fitted with a removable silica sheathed heater and screw threaded connectors for ease of cleaning.
- Distillate temperature is approx. between 25º to 45º C which is ensured by an efficient condenser.
- The stand is powder coated for rust free operation and lustrous appearance.
- The unit automatically switches off if water level in the boiler falls below heater.
- Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.
- Drain nozzle/ Teflon Stop Cork is provided for easy cleaning and maintenance.
- Electrical Power : 220/240 V, 50/60Hz, Single Phase Supply.
Technical Specifications
| Model IG-BDDU3 | |
| Parameters | Values |
| Specific Conductivity | 0.8-1 μs/cm |
| Biological Activity (distillate quality) | Pyrogen Free |
| Organic Matter | Nil |
| Total Solids | 0.1 mg/ltr |
| Silica | <0.01 mg/ltr |
| Output Capacity (Approx.) | 2.5 – 4 Ltr/hr |
| Power Rating (Total) | 6 KW |
| Cooling Water Consumption (Approx.) | 150 Ltr/Hr |
