ABOUT THE COMPANY:
iGene Labserve Pvt. Ltd. is gaining recognition by offering resilient, innovative solutions in laboratory instrumentation across healthcare, genomics, drug discovery, biopharma, and food & beverage sectors. We strive to enhance lab efficacy and reduce challenges through advanced technologies and a diverse product portfolio tailored to our customers’ needs.
IG-218GD
The Basic Gel Documentation System equipped with a high-resolution DSLR camera is supplied as a complete setup for gel imaging applications. The system includes the main instrument body, power cord, UV transilluminator, USB connecting cable, UV protection shield, white light sheet, mouse, and a pen drive containing the software and user manual. Additionally, an optional multipurpose blue and white light plate is available to support a wider range of gel visualization applications.
IG-618GD Touch
Touch-screen Gel Documentation System with 6.3 MP camera for Nucleic acids and proteins. The system includes the main instrument body, power cord, UV transilluminator, USB connecting cable, UV protection shield, white light sheet, mouse, and a pen drive containing the software and user manual. Additionally, an optional multipurpose blue and white light plate is available to support a wider range of gel visualization applications.
IG-14CIS
Chemiluminescence imaging system. The system includes the main instrument body, power cord, UV transilluminator, USB connecting cable, UV protection shield, white light sheet, mouse, and a pen drive containing the software and user manual. Additionally, an optional multipurpose blue and white light plate is available to support a wider range of gel visualization applications.
IG-15CIS
Chemiluminescence imaging + Gel documentation system for nucleic acids and proteins. The system includes the main instrument body, power cord, UV transilluminator, USB connecting cable, UV protection shield, white light sheet, mouse, and a pen drive containing the software and user manual. Additionally, an optional multipurpose blue and white light plate is available to support a wider range of gel visualization applications.

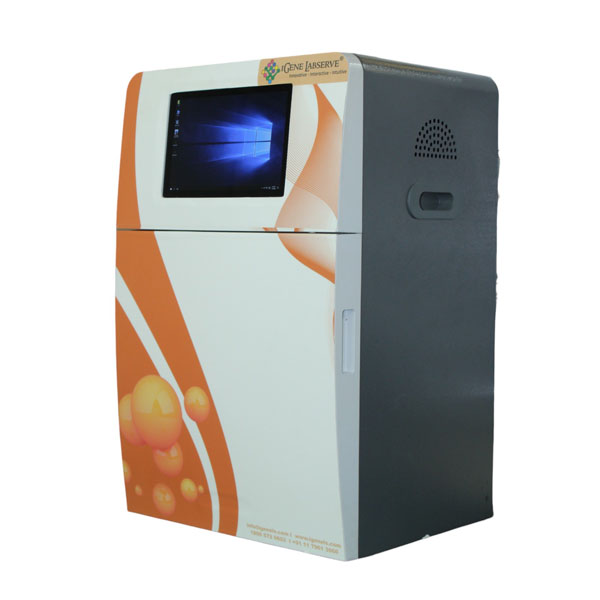

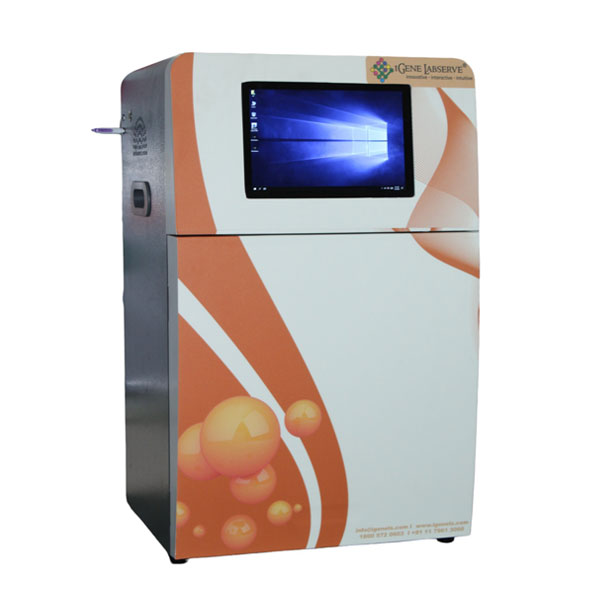

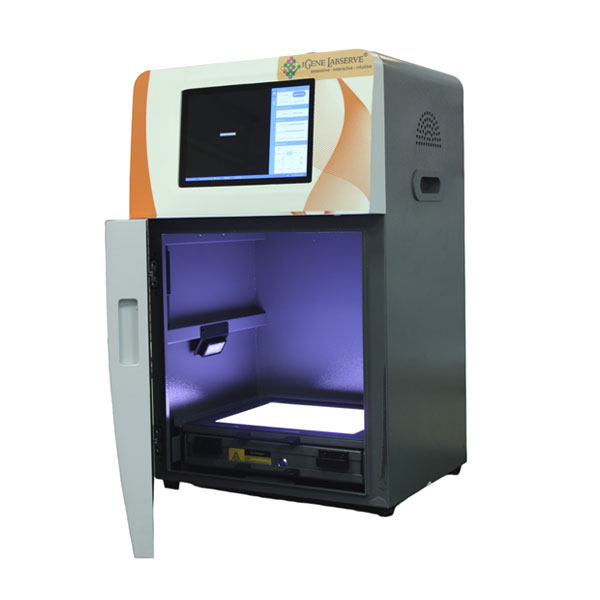

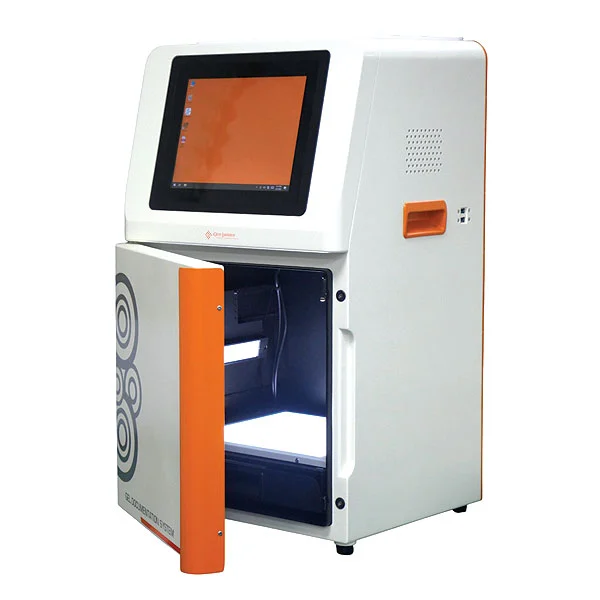

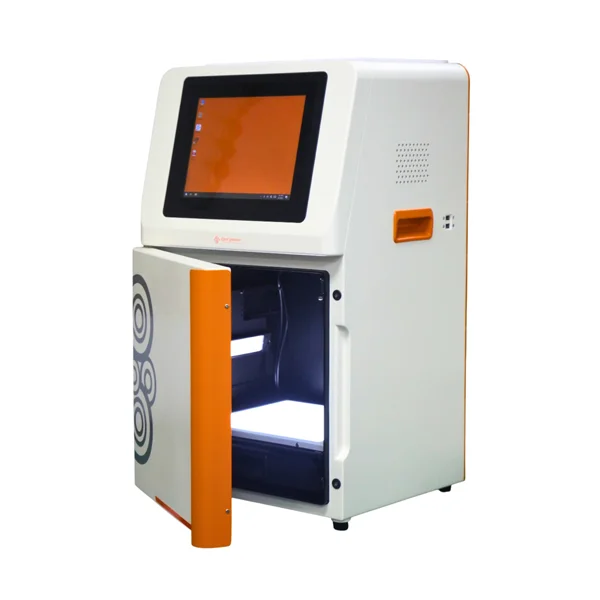

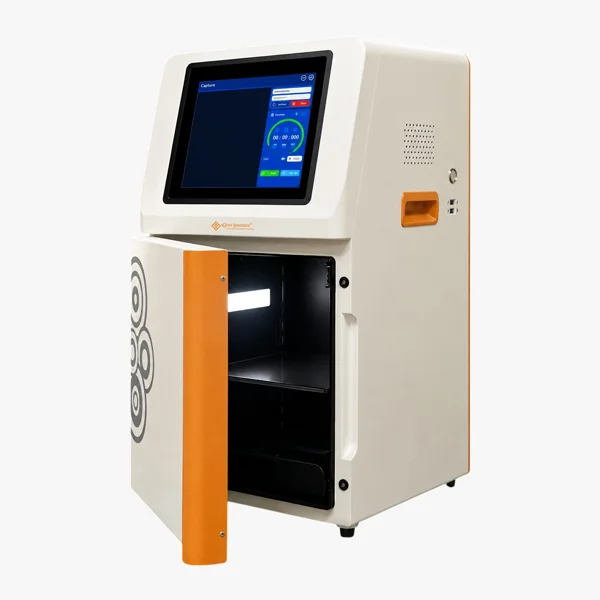

IG-16CIS
Chemiluminescence imaging + Gel documentation system for nucleic acids and proteins + Fluorescence Gel Imaging System. The system includes the main instrument body, power cord, UV transilluminator, USB connecting cable, UV protection shield, white light sheet, mouse, and a pen drive containing the software and user manual. Additionally, an optional multipurpose blue and white light plate is available to support a wider range of gel visualization applications.
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Model No. | IG-16CIS |
| Dimensions | 400 x 371 x 700 mm |
| Pixel Resolution | 9 million pixels |
| Resolution | 3000 X 3000 |
| Pixel size | 3.76 x 3.76 μm |
| Target size | 1 “ (11.28 x 11.28 mm) |
| Full well capacity | 16.5ke-(HCG), 50.5ke-(LCG) |
| Sensitivity | 877 mV @ 1/30s |
| Readout noise | 1.24e-(HCG), 3.22e-(LCG) |
| Dark current | 0.0003e-/s/pixel @-15°C |
| Signal to noise ratio | 42.2dB (HCG), 47dB (LCG) |
| Exposure time | 0.1ms-1h |
| Binning mode | 1 x 1, 2 x 2, 3 x 3 |
| Grayscale | 16-bit (65536 levels) |
| Grayscale | 16-bit (65536 levels) |
| Cooling | Relative to ambient temperature -40°C |
| Camera type | Black and white camera |
| Aperture | F0.95~F16 |
| Focal length | 17 mm |
| Type | Motorized lens |
| Bright field light source | Downward facing LED white light source, symmetrically distributed on both sides |
| UV light source |
|
| Fluorescence source | Episcopic fluorescence source, 470nm, 530nm, 650nm, symmetrically distributed on the top |
| Dual blue/white light sources | Optional: Blue light/white transmission switching, each with 3 levels of power cycle adjustment |
| Industrial computer | 10.4″ display (1024 x 768), Windows OS, 16GB RAM, 512GB SSD, Integrated Bluetooth/Wi-Fi |
