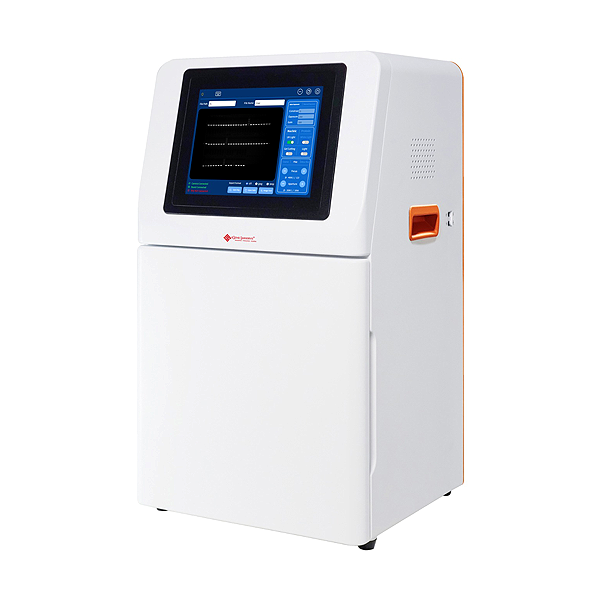

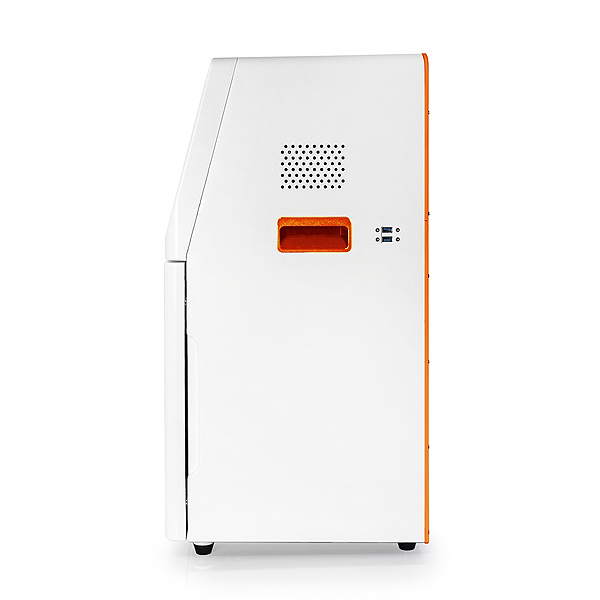

High-Resolution Imaging System Camera
- Equipped with a 6.3-megapixel CMOS camera for high- resolution gel imaging
- Captures sharp and detailed images of DNA, RNA, and protein bands
- Provides high sensitivity and low noise imaging for accurate gel documentation
10.4-Inch Windows OS Display
- Integrated 10.4-inch touchscreen display for easy system control
- Runs on Windows operating system for smooth and intuitive operation
- Enables direct image capture, viewing, and analysis without an external computer
Fully Sealed Dark Box with Auto UV Shut-Off
- Fully sealed darkroom chamber prevents external light interference during imaging
- Ensures high-contrast and accurate gel image capture
- Automatic UV shut off activates when the door is opened for enhanced user safety
250 × 250 mm Field of View
- Large 250 × 250 mm imaging area for capturing full-size gels in a single image
- Supports various gel sizes and formats for flexible laboratory use
- Ensures clear and uniform imaging across the entire gel surface
Multipurpose blue and white light plate
- Provides blue and white light illumination for versatile gel visualization
- Suitable for SYBR, safe dyes, and visible stained gels
- Enables flexible imaging for different gel applications in a single platform
- Field of View: 245 x 233 mm
- Blue diffusing tray: 245 x 233 mm
- White diffusing tray: 245 x 233 mm
TECHNICAL SPECIFICATIONS:
| Model No. | IG-618GD Touch |
| Dimensions | 400 × 371 × 700 mm |
| Sensor Type | 6.3 MP CMOS (Complementary Metal-Oxide Semiconductor) Image Sensor |
| Resolution | 3072 × 2048 |
| Pixel Size | 2.4 × 2.4 μm |
| Pixel Density | 16-bit |
| Exposure Time | 17 μs – 15 s |
| Image Format | JPEG, PNG, TIFF, RAW |
| Dynamic Range | 60–75 dB |
| Sensitivity | High sensitivity with low noise imaging |
| Signal-to-Noise Ratio (SNR) | ≥ 40 dB |
| Exposure Control | Automatic and Manual Exposure |
| Frame Rate | Up to 30–60 fps depending on resolution |
| Power Requirement | External power supply (battery-less operation when integrated in instruments) |
| Operating Temperature | 10 – 45 °C |
| Image Processing | Built-in image enhancement, noise reduction, and contrast optimization |
| Real time image capture | Capture gel images directly from the camera with live preview for proper positioning |
| Auto exposure control | Automatically adjusts exposure settings to obtain clear and optimized gel images |
| Manual Image Adjustment | Allows adjustment of brightness, contrast, gain, and focus for improved visualization |
| Image Editing Tools | Includes crop, rotate, zoom, and color adjustment functions |
