FEATURES & SPECIFICATIONS
FEATURES:
- New and unique appearance, the interface operation is simple and convenient, compact size.
- High performance peltier, precise temperature control.
- Compatible with PCR tubes/8-strip tubes/ 96- well micro plates.
- Excellent temperature rising and cooling rate up to 5℃ / s.
- Single mould aluminum case provides higher heat dissipation performance.

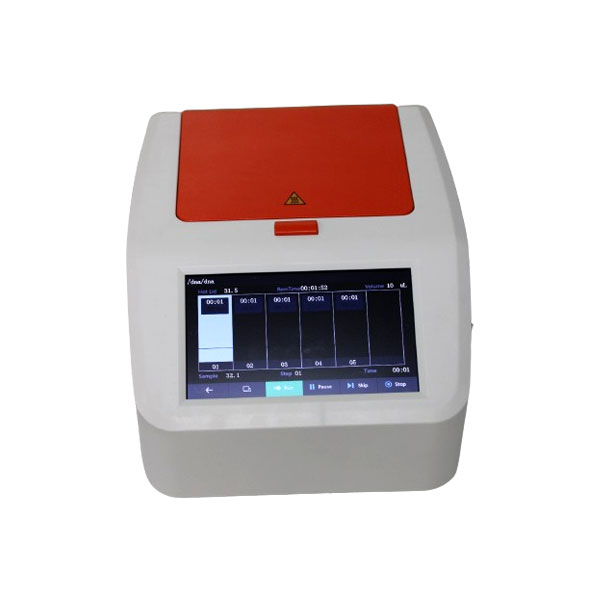

- 7-inch TFT high-definition full-touch color screen, can quickly edit the required files, visual display of temperature curve, convenient and fast setting, accurate display of temperature curve and instrument running process status in real time.
- The system has a built-in gradient calculator, which can easily obtain accurate annealing temperature for different experimental samples to optimize PCR reaction conditions.
- User login, rights management, password protection, data security, administrators can clear users, large data storage; the maximum number of files that can be stored in the machine is greater than 1000.
- Unique heating lid design for adjustable height of tubes
- Real-time display of gradient temperature distribution, real-time temperature display, more conducive to controlling the sample temperature.
- The hot lid temperature and working mode can be set, hot lid can be switched on and off and tube temperature control mode and module temperature control mode can be chosen to meet more different experimental requirements.
Technical Parameters:
Specifications | Parameters |
---|---|
Model No. | IG-96GEP |
Temp. control range | 4~105℃ |
Application container | 96X0.2ml PCR tube /12*8- strip tubes/ 96- Well micro plate |
Max. heating rate | 4.5℃/s |
Maxi. cooling rate | 4.0℃/s |
Temp. uniformity | ±0.25℃ |
Temp. display accuracy | ±0.1℃ |
Temp. control accuracy (at 55ºC) | ±0.3℃ |
Temp. control method | Block/Tube |
Gradient temp. uniformity | ±0.3℃ |
Gradient temp. accuracy | ±0.3℃ |
Gradient temp. range | 30~99.9℃ |
Gradient temp. difference range | 0.1~30℃ |
Single step time range | 1~59m59s(0 is forever) |
Hot cover temp. range | 30-110℃ |
Max. steps of the program | 30 |
Program max. cycle number | 99 |
Time increment/ decrement | -599~+599s |
Temp. increment/decrement | -9.9~+9.9℃ |
Program pause function | Yes |
16º Insulation | Forever |
LCD | 7 inches,800×480 Pixel |
Program storage quantity | >1000 |
Communication Interface | USB 2.0(extension) |
Power supply | 100-240V AC 6.6-3.1A 50/60Hz |
Dimensions(mm) | W.240 × D.270 × H.150 |
Dimensions(mm) | W.240 × D.270 × H.150 |
Net weight | 3.2kgs |
